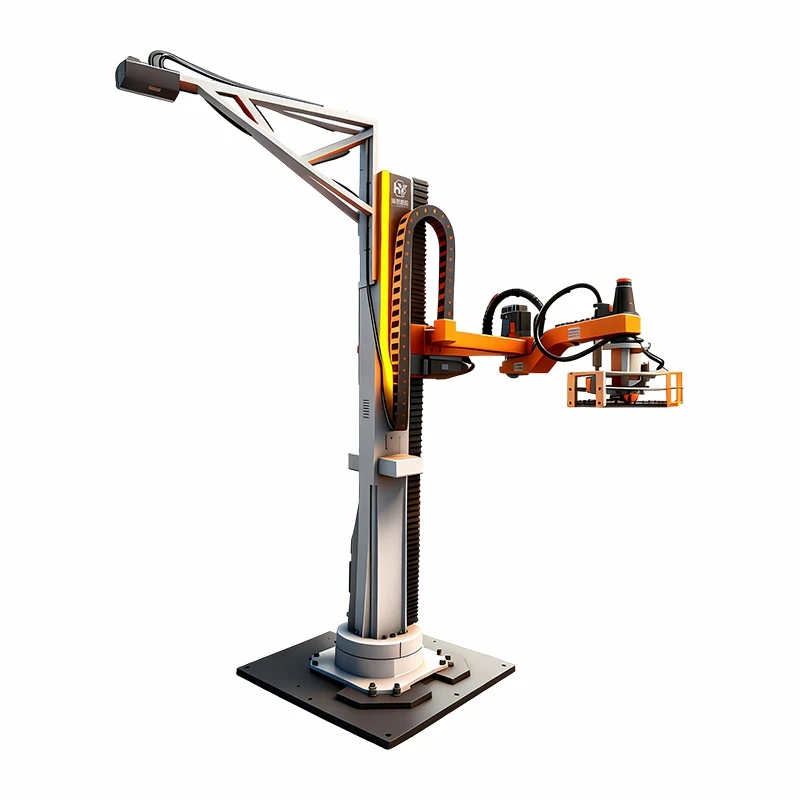

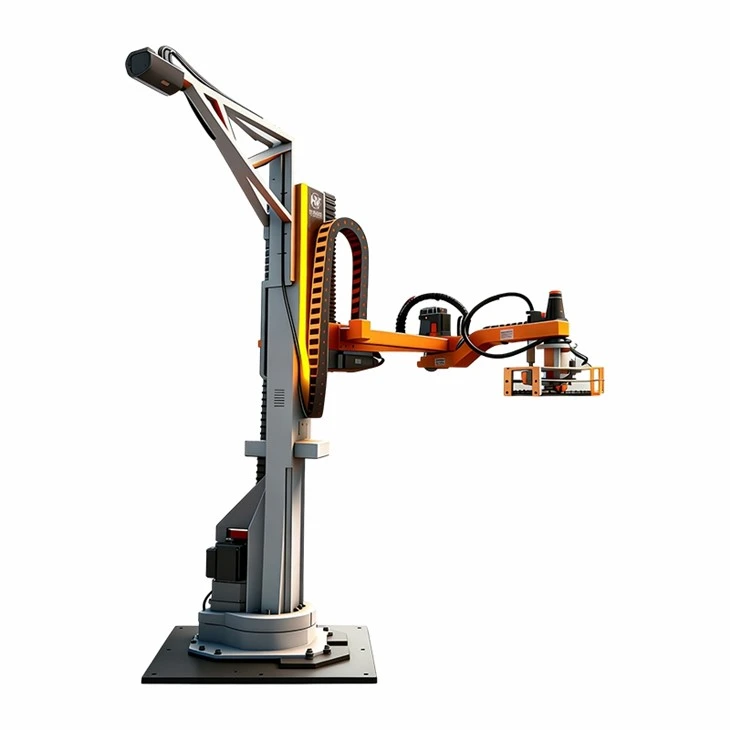

Single Column Robot Palletizer
The single-column robotic palletizer supports non-standard customization of body height, working radius, gripper type and load capacity to flexibly satisfy personalized on-site production-line requirements of various customers. Adopting an all-steel structural frame and a servo closed-loop control system, the equipment runs smoothly with low jitter.
In the conventional manual palletizing mode, a large number of workers are required, resulting in high labor costs. Besides, the output fluctuates greatly due to operator fatigue. After switching to the single-column robotic palletizer, labor input can be remarkably reduced. Free from output restrictions caused by human fatigue, the machine maintains stable and consistent production efficiency in long-term operation. Its palletizing cycle reaches 5-8 cycles per minute. With an overall IP54 protection rating, it is applicable to the on-site working conditions of most factory automated production workshops.
Product Specification
|
Item |
Specification |
|
Vertical Pole Height |
3028mm (Custom height available) |
|
Rated Load Directly Below Axis J4 |
50kg |
|
Reference Load for Offset Mounting Directly Below Axis J4 |
50kg Note: The mass center shall not be more than 300mm from the center of Axis J4 |
|
Motion Radius |
2205mm |
|
Lifting Stroke |
2164mm |
|
Number of Axes |
4 |
|
Repeat Positioning Accuracy |
±0.5mm on plane (center of Axis 4), ±0.2mm for lifting |
|
Lifting Stroke Range of Axis J1 |
±170° |
|
Rotation Angle Range of Axis J2 |
+453 to +2554mm |
|
Rotation Angle Range of Axis J3 |
±135° |
|
Rotation Angle Range of Axis J4 |
±360° |
|
Supported External Communication Protocol |
Modbus/TCP |
|
I/O |
16 sets of digital input (3 sets occupied by the system, 13 sets reserved)16 sets of digital output (12 sets of transistor output, 4 sets of relay output) |
|
Total Weight of Equipment |
800kg |
|
Total Weight of Control Cabinet |
50kg |
|
Power Supply |
AC380V (±10%) 50/60Hz, meeting total power of 8kw |
|
Supply Pressure |
0.5-0.7Mpa |
|
Air Source Type |
Clean compressed air, with oil-water separator required at the front end |
|
Floor Area |
2855*1330mm |
|
Floor Area During Operation |
Max. 4400*4400mm |
|
Minimum Factory Height |
≥3200mm |
Product Features
Working Range: Reach 2200 mm, lifting travel 2280 mm, maximum depalletizing height 2000 mm, load capacity 50-150 kg (height-increase customization available) to satisfy stacking requirements for more layers.
Stable Production Capacity: The system supports 24-hour continuous production. Free from operator fatigue, it maintains consistent output continuously.
High Stability: Adopting an all-steel frame and servo closed-loop control, the equipment runs smoothly without jitter.
Ingress Protection Rating: IP54, well-suited for most indoor automated factory workshops.
Easy Operation: Parameter-based settings. No professional programming required; ordinary workers are qualified for operation.
High Safety Level: Multi-layer safety protection including emergency stop, overload protection, and acoustic-optical alarm.
Small Footprint: Vertical-type structure greatly saves workshop floor space and is suitable for revamping of existing production lines.
Low Maintenance Cost: Mature mechanical structure, commonly available spare parts, and extremely low failure rate.
It replaces conventional manual operations, including palletizing, bag cutting, and material dumping. It effectively solves industrial pain points such as severe on-site dust, high labor intensity, difficulties in worker recruitment, and high operational safety risks, and realizes standardization and intelligent upgrading of production procedures.
Product Application
The column-type palletizing robot workstation performs operations for industrial bag-form materials, including incoming material conveying → material positioning and conditioning → robot gripper picking → lifting → rotary transferring → descending for placement arrangement → layer-by-layer cyclic stacking → completion of full pallet stacking → discharge of full pallets and feeding of empty pallets. The equipment is suitable for general bag-shaped raw materials such as woven sacks, kraft paper bags, and PP chemical bags. It is widely used for bagged-material palletizing working conditions in chemical, building-material, rubber-plastic, feed, and powder raw-material industries.
The maximum height of the robot is within 8 meters, and the maximum load, including the gripper is up to 150 kg, which can meet different industrial automation requirements.
FAQ
Q: Are you trading company or manufacturer?
A: Haiyi is a manufacturer company that offers multiple types of industrial robots that helps with your business.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for column robots.
OEM: We can manufacture as your design, drawings and requirements.
ODM: We have standard 50kg/150kg models, we can customize logo, color and appearance for you.
Q: Can we use our own logo?
A: Yes, we can print or engrave your private logo according to your request.
Q: Can you do our own packaging?
A: Yes, you just provide the package design, and we will produce it accordingly. We also have professional designers for packaging design.
