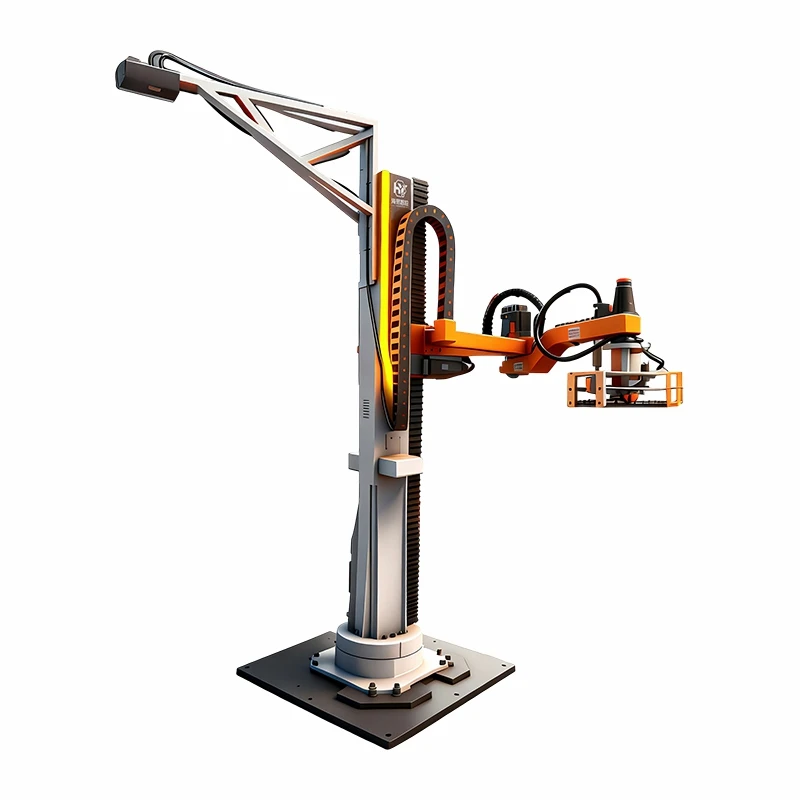

Palletizing Robotic Arm
Dedicated to empowering intelligent manufacturing and solving core workstation automation challenges, the Palletizing robotic arm is a flexible and precise automated component with outstanding stability and adaptability. This efficient Palletizing robotic arm is widely used in automotive, 3C electronics, metal processing, plastic chemicals, food and medicine industries, playing an important role in palletizing, handling, and loading/unloading workstations. Its flexible motion structure enables high-precision operation in limited spaces, making it suitable for production line transformation and workstation upgrading. It supports quick program switching to adapt to different products and stacking requirements, with simple operation and short commissioning time. Driven by stable control systems, it runs smoothly with low noise and can work continuously for a long time, replacing manual labor in repetitive and heavy tasks. By improving the automation level of core workstations, it reduces labor input, improves production efficiency, and enhances product quality consistency, becoming an essential part of enterprise intelligent manufacturing upgrading.
Product Specification
|
Item |
Specification |
|
Vertical Pole Height |
3175mm (Custom height available) |
|
Rated Load Directly Below Axis J4 |
150kg |
|
Reference Load for Offset Mounting Directly Below Axis J4 |
150kg (Mass center of load is 0-150mm from the center of Axis J4) 100kg (Mass center of load is 150-300mm from the center of Axis J4) 50kg (Mass center of load is 300-500mm from the center of Axis J4) Note: The mass center shall not be more than 500mm from the center of Axis J4 |
|
Motion Radius |
2200mm |
|
Lifting Stroke |
2100mm |
|
Number of Axes |
4 |
|
Repeat Positioning Accuracy |
±0.5mm on plane (center of Axis 4), ±0.2mm for lifting |
|
Rotation Angle Range of Axis J1 |
+453 to +2554mm |
|
Lifting Stroke Range of Axis J2 |
±170° |
|
Rotation Angle Range of Axis J3 |
±135° |
|
Rotation Angle Range of Axis J4 |
±360° |
|
Supported External Communication Protocol |
Modbus/TCP |
|
I/O |
16 sets of digital input (3 sets occupied by the system, 13 sets reserved)16 sets of digital output (12 sets of transistor output, 4 sets of relay output) |
|
Total Weight of Equipment |
800kg |
|
Total Weight of Control Cabinet |
50kg |
|
Power Supply |
AC380V (±10%) 50/60Hz, meeting total power of 8kw |
|
Supply Pressure |
0.5-0.7Mpa |
|
Air Source Type |
Clean compressed air, with oil-water separator required at the front end |
|
Floor Area |
2855*1330mm |
|
Floor Area During Operation |
Max. 4400*4400mm |
|
Minimum Factory Height |
≥3200mm |
- Highly flexible deployment with wide cylindrical working coverage
- Multiple installation modes adapt to different line layouts
- Lightweight design delivers high speed and stable accuracy
- Simple structure lowers manufacturing and maintenance expenses
- High-rigidity arm body provides strong anti-vibration performance
- Modular components and organized cable management
- Smooth integration with conveyor, packaging and control systems
FAQ
Q: What's your after-sale service?
A: We offer 2 years of warranty, free software update, regular inspection services.
Q: How can we get a quote?
A: Usually we quote within 24 hours after we get your inquiry.
Q: Can you help with the design?
A: Yes, we can help design your own special model.
Q: What's the trade term and payment term?
A: We currently only offer CBD(cash before delivery).
