Haiyi Intelligent Control Robotics (Hangzhou) Co., Ltd. is one of the leading manufacturers and suppliers of agv lift trucks in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to buy CE approved agv lift trucks, welcome to get quotation from our factory.
AGV lift trucks

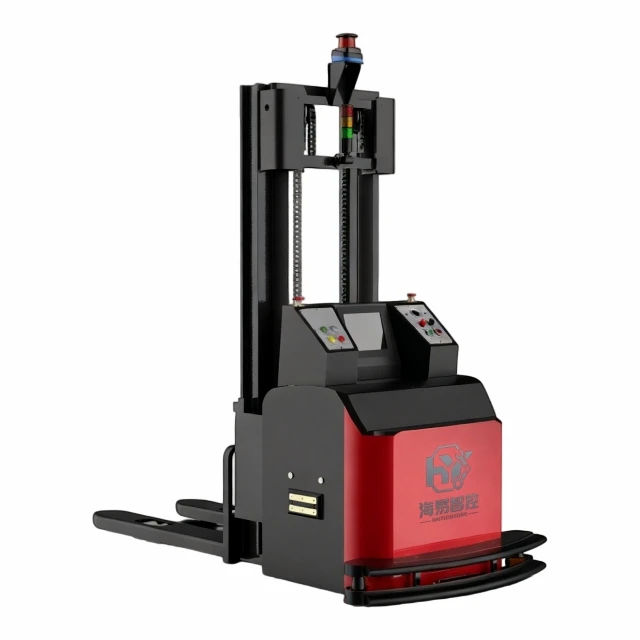

Haiyi Intelligent Control Tray Forklift AGV (Model C1-HL), also referred to as agv lift trucks, is an intelligent unmanned handling device that takes high efficiency, precision and stability as its core advantages. Designed especially for standardized pallet handling, these agv lift trucks feature compact structure, small turning radius, flexible layout and excellent intelligent performance. They can be smoothly integrated into intelligent warehousing systems and flexible production lines, achieving fully automated and digitalized material handling management throughout the workflow. With strong load capacity, stable navigation and reliable safety performance, they greatly enhance the stability and continuity of internal logistics, reduce labor costs and improve the overall intelligence level of production and storage.
Product Specification
|
Parameter Category |
Specifications |
|
Product model |
C1-HL |
|
Dimensions |
2510 × 850 × 2100mm (Customizable) |
|
Rated load |
1000-10000kg (Customizable) |
|
Navigation mode |
Laser/Magnetic navigation |
|
Lifting height |
125mm |
|
Communication mode |
5G/WiFi |
|
Travel speed |
90m/min |
|
Stop accuracy |
± 10mm |
|
Navigation accuracy |
± 10mm |
|
Turning radius |
≤ 1.8m |
|
Climbing ability |
≤ 8% |
|
Battery life |
Comes standard with 8 hours (expandable) |
|
Charging mode |
Automatic charging/manual charging/battery change |
|
Safety function |
Obstacle detection + mechanical anti-collision + emergency stop button + sound and light alarm |
- Strong load & customizable structure: Load range 1000–10000kg, supports standard & non-standard pallet customization for diverse industrial needs
- Stable & accurate navigation: Laser/magnetic hybrid guidance, positioning and stopping accuracy ±10mm for complex path operations
- Intelligent control & efficient operation: Equipped with 5G/WiFi, multi-machine scheduling, running speed 90m/min, capable of 24-hour uninterrupted work
- Complete safety system: Triple protection of sensor, mechanical bumper and emergency stop, detection range ≤3m, emergency braking <20mm
- Excellent chassis adaptability: Turning radius ≤1.8m, gradeability ≤8%, 8-hour battery life, optional auto-charging for non-stop operation
FAQ
Q: When can I get the price?
A: Usually we quote within 24 hours after we get your inquiry.
Q: What's your MOQ?
A: We're flexible with the MOQ, mixed models are welcome.
Q: How long is your delivery time?
A: The delivery time varies based on the destination city and the urgency of the order.
Q: Do you provide sample? Is it free?
A: No, but we invite our customers to view how our robots work.
